Информация о станке
- Год выпуска2007
- Дата размещения16.08.2017
- Качество оборудованияБ/У, можно проверить в работе
- Местоположение станка Russia , Novosibirsk
Описание

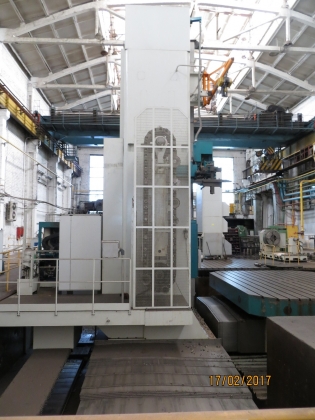

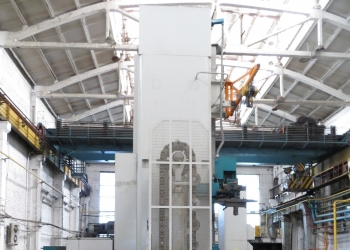

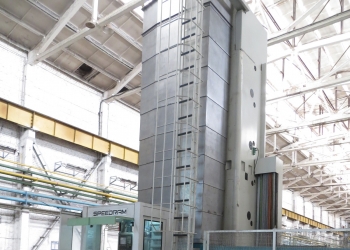

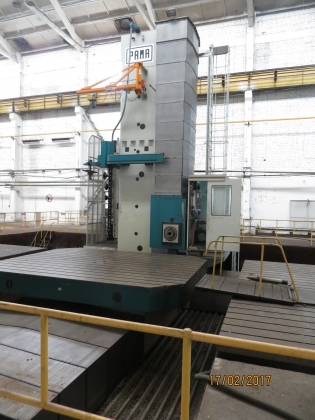

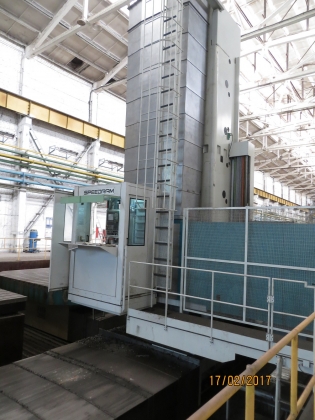

Горизонтальный станок c ЧПУ PAMA Speedram 4000 CNC
Тип: Горизонтальный обрабатывающий центр
Состояние: Б/У
Год выпуска: 2007
Количество осей: 4
X= 12000 мм
Y= 5000 мм
Z= 1600 мм
Размер стола: 4000 мм х 5000 мм
Комплектация:
Horizontal Boring Mill PAMA Speedram 4000 CNC
New in 2008
High accuracy: IT6 and up
Milling of planes, ledges, grooves
- Contour milling
- Drilling holes up to Ø140 mm
- Reaming, deployment
- Boring of holes up to Ø1250 mm
- Cutting and thread milling
- Control the size and parameters of machined parts using the measuring head Renishaw.
Application of the machine, examples of processed products:
- Oil and gas engineering: the body of heavy gears and pumps
- Power engineering: the body and the elements of power plants
- Aircraft: chassis components
- Engine: the cylinder blocks of heavy internal combustion engines
- General engineering: large body parts and metal elements of transmissions and much more
Characteristics:
X/Y/Z/W: 12000/5000/1600/1400mm
Z+W: 3000mm
Traveling speeds:
-working (X,Y,Z,W): 0.5-6000 mm/minute
-accelerated (X,Y,Z,W): 12000 mm/minute

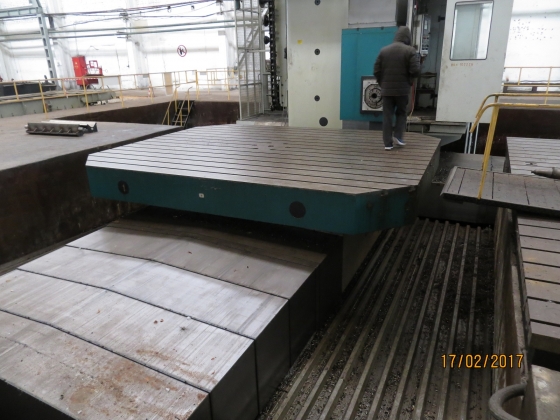

Table:
Dimensions: 4000x5000mm
Loading: 100t
Torque (on the axis B): 80,000 Nm
Torque lock (on the axis B): 100000 Nm
Linear displacement table V axis: 3000 mm
Speed Linear Motion: 0,5-10000 mm / minute
Speed circular motion: 0,0005-1,5 min-1
Spindle:
Spindle Slide dimensions: 520x580 mm
Spindle diameter: 250 mm
speed (3 steps): 1400 mi
